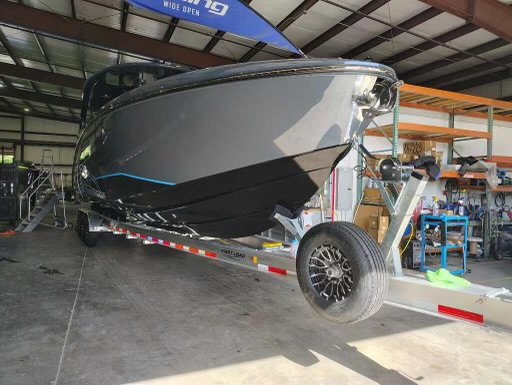

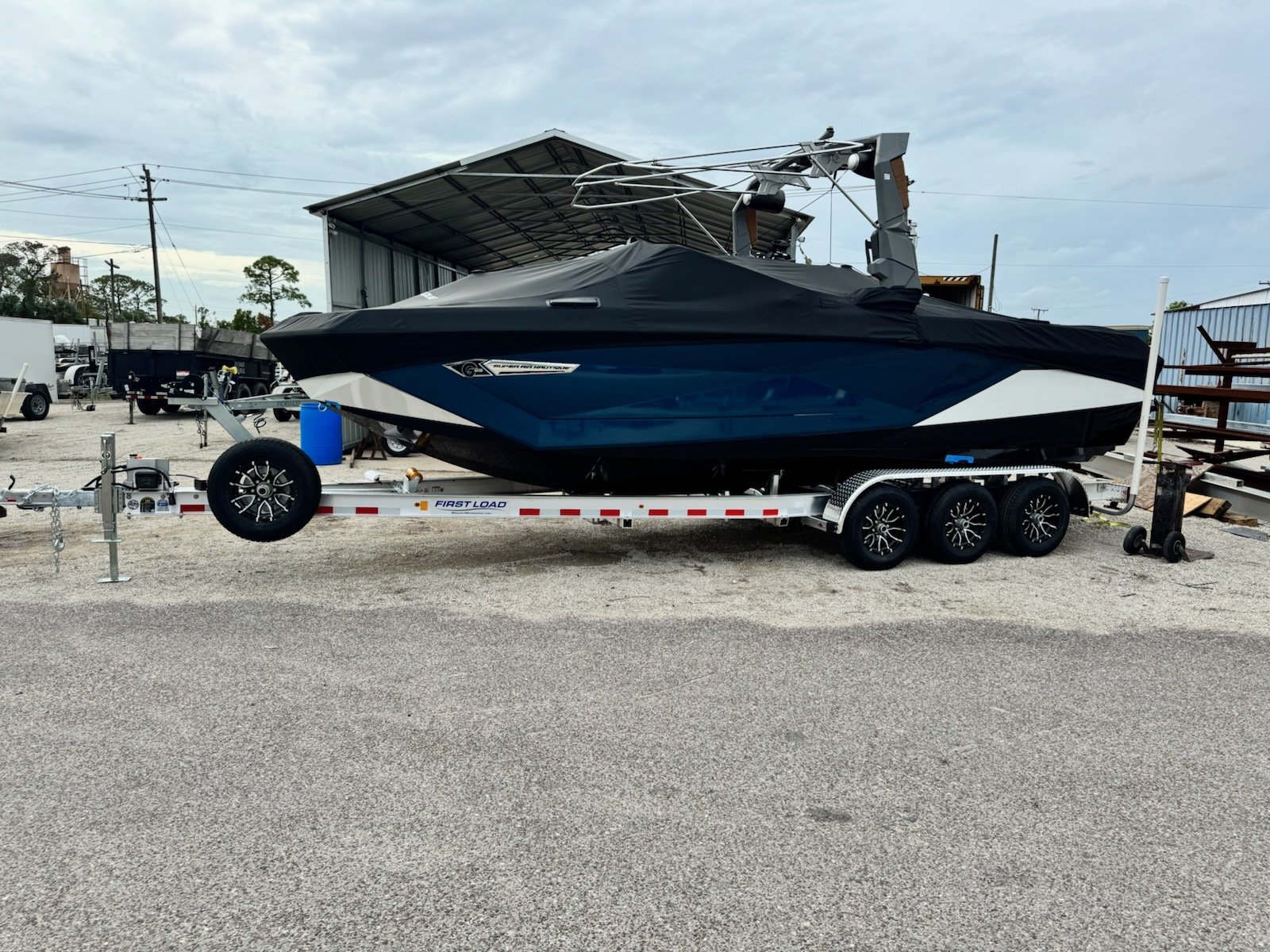

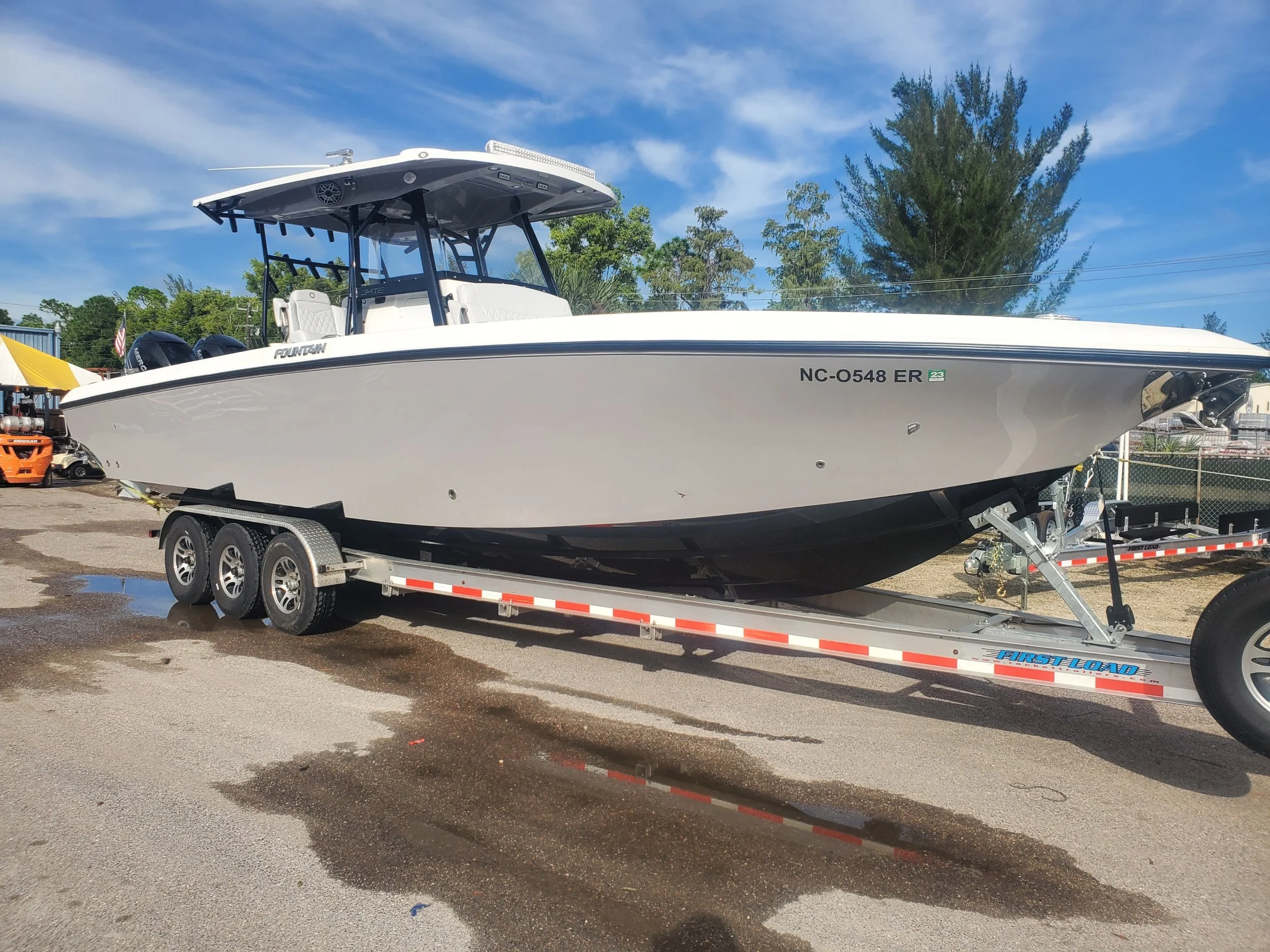

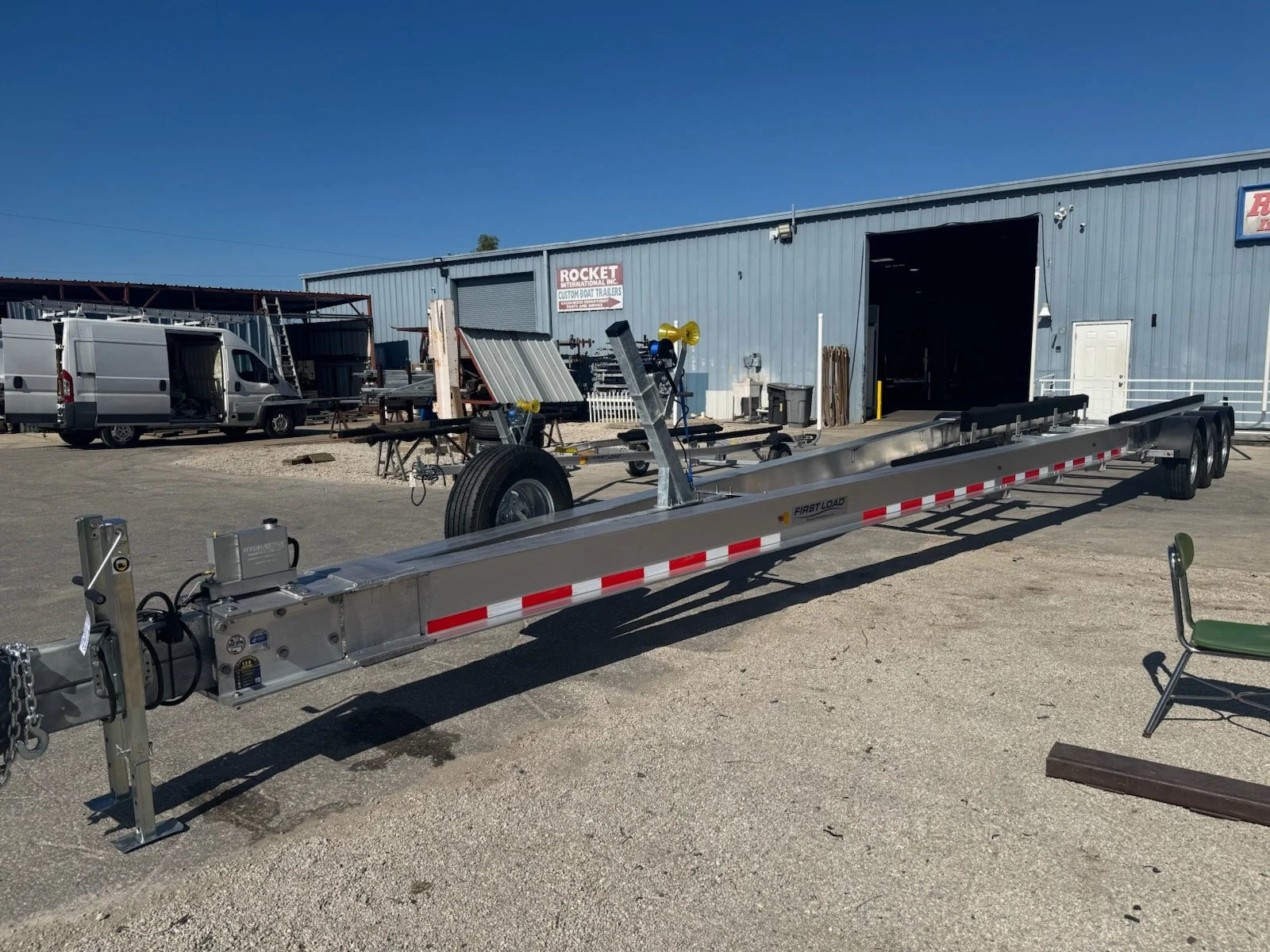

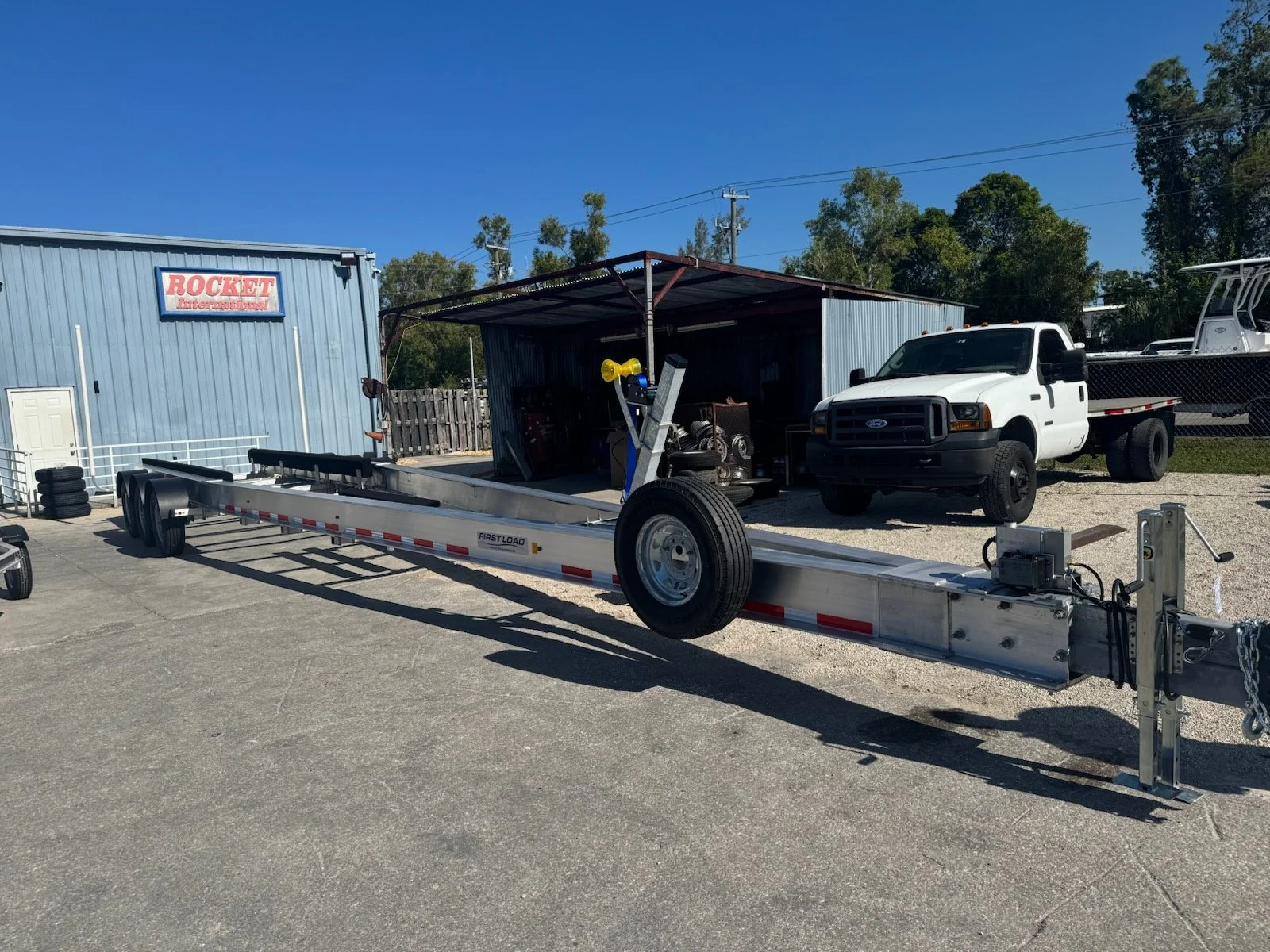

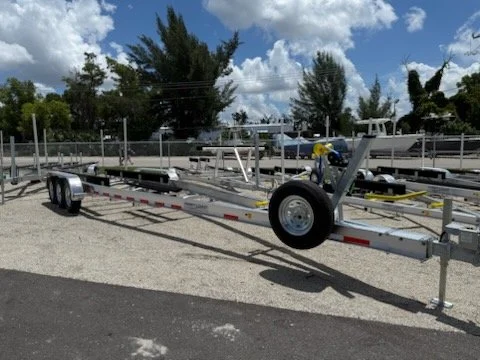

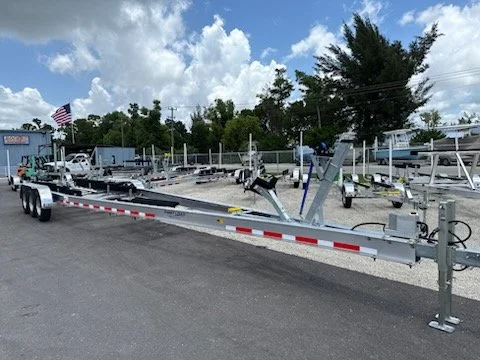

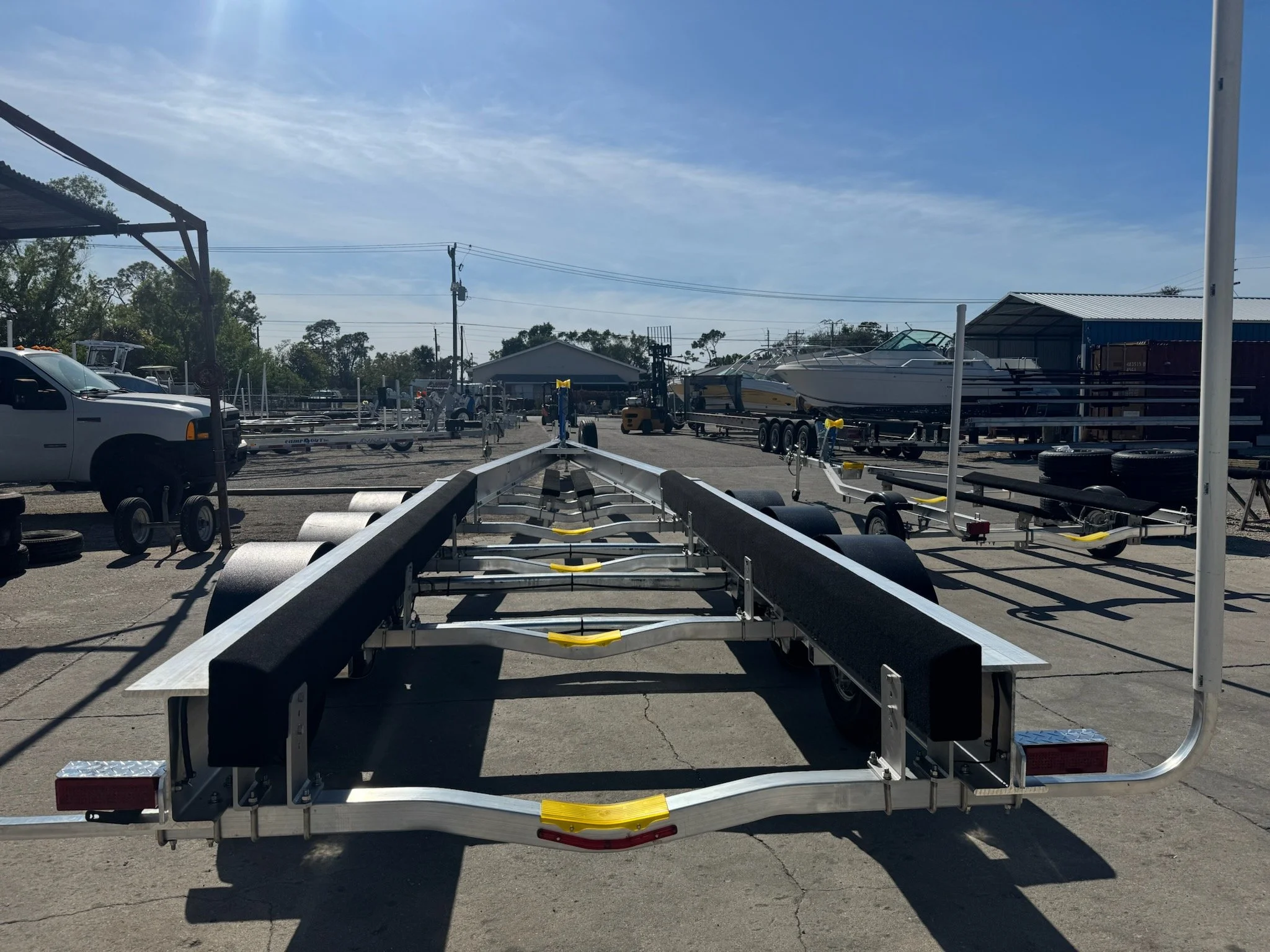

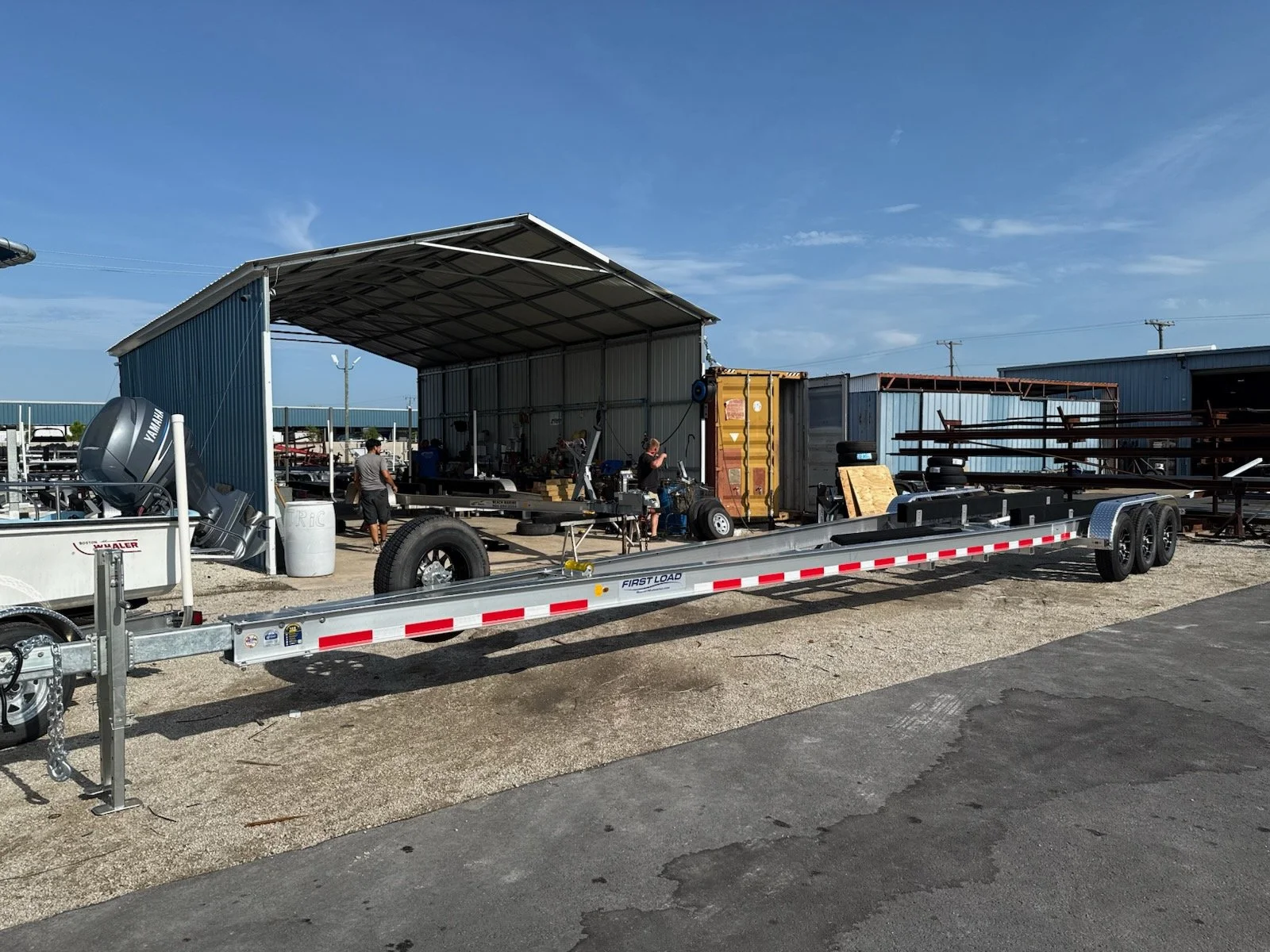

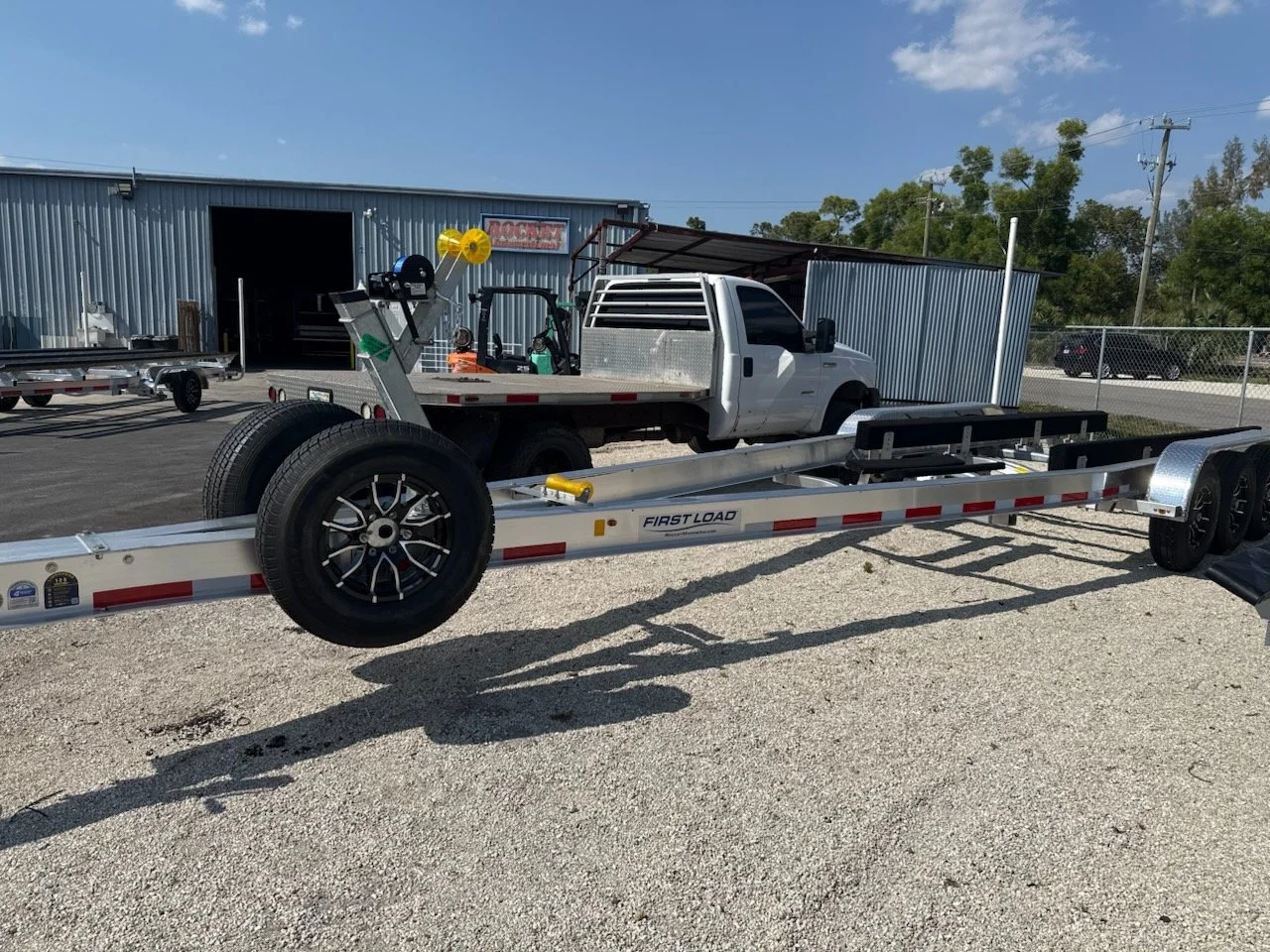

Aluminum Triple Axle Trailer

First Load – Aluminum Trailer

Specifications

Part#
140210
140260
140265
140280
140285
140300
140310
140330
Trailer Model
AF2628TRI
AF2830TRI
AF2830TRI
AF3032TRI
AF3032TRI
AF3335TRI
AF3638TRI
AF3840TRI
Boat Length
26' - 28'
28' - 30'
28' - 30'
30' - 32'
30' - 32'
33' - 35'
36' - 38'
38' - 40'
Frame W/L
80"/32'
80"/35'
80"/35'
80"/37'
80"/37'
80"/39'
80"/41'
80"/45'
I-BEAM
6.5" x 27'
6.5" x 30'
6.5" x 30'
7.5" x 32'
7.5" x 32'
7.5" x 35'
7.5" x 37'
8" x 40'
Gross Weight
15000
15000
18000
15000
18000
18000
18000
21000
Trailer Weight
2200
2200
2200
2400
2400
2400
2600
3000
Load Capacity
12800
12800
15800
12600
15600
15600
15400
18000
Tire Size
15D
15D
16E
15D
16E
16E
16E
16G

Standard Equipment

  • Aluminum I-Beam Construction

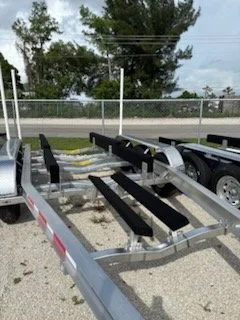

  • Adjustable Y-Bar Hull Supports
  • Heavy Duty Centering Guides
  • POSI-LUBE Lubrication
  • Guide Poles
  • Stainless Hardware
  • Aluminum Diamon Plate Fenders
  • Galvanized Wheels & Hubs
  • Torsion Axles
  • Adjustable Bow Stop & Winch Stand
  • Foot Jack
  • Disc Brakes All Wheels
  • LED Tail Lights and Side Markers

Specifications

PART # 140210
Trailer Model AF2628TRI
Boat Length 26′-28′
Frame W/L 80″/32′
I-Beam 6.5″x27′
Gross Weight 15000
Trailer Weight 2200
Load Cap 12800
Tire Size 15D
PART # 140260
Trailer Model AF2830TRI
Boat Length 28′-30′
Frame W/L 80″/35′
I-Beam 6.5″x30′
Gross Weight 15000
Trailer Weight 2200
Load Cap 12800
Tire Size 15D
PART # 140265
Trailer Model AF2830TRI
Boat Length 28′-30′
Frame W/L 80″/35′
I-Beam 6.5″x30′
Gross Weight 18000
Trailer Weight 2200
Load Cap 15800
Tire Size 16E
PART # 140280
Trailer Model AF3032TRI
Boat Length 30′-32′
Frame W/L 80″/37′
I-Beam 7.5″x32′
Gross Weight 15000
Trailer Weight 2400
Load Cap 12600
Tire Size 15D
PART # 140285
Trailer Model AF3032TRI
Boat Length 30′-32′
Frame W/L 80″/37′
I-Beam 7.5″x32′
Gross Weight 18000
Trailer Weight 2400
Load Cap 15600
Tire Size 16E
PART # 140300
Trailer Model AF3335TRI
Boat Length 33′-35′
Frame W/L 80″/39′
I-Beam 7.5″x35′
Gross Weight 18000
Trailer Weight 2400
Load Cap 15600
Tire Size 16E
PART # 140310
Trailer Model AF3638TRI
Boat Length 36′-38′
Frame W/L 80″/41′
I-Beam 7.5″x37′
Gross Weight 18000
Trailer Weight 2600
Load Cap 15400
Tire Size 16E
PART # 140330
Trailer Model AF3840TRI
Boat Length 38′-40′
Frame W/L 80″/45′
I-Beam 8″x40′
Gross Weight 21000
Trailer Weight 3000
Load Cap 18000
Tire Size 16G

Standard Equipment

  • Aluminum I-Beam Construction
  • Adjustable Y-Bar Hull Supports
  • Heavy Duty Centering Guides
  • POSI-LUBE Lubrication
  • Guide Poles
  • Stainless Hardware
  • Aluminum Diamon Plate Fenders
  • Galvanized Wheels & Hubs
  • Torsion Axles
  • Adjustable Bow Stop & Winch Stand
  • Foot Jack
  • Disc Brakes All Wheels
  • LED Tail Lights and Side Markers
