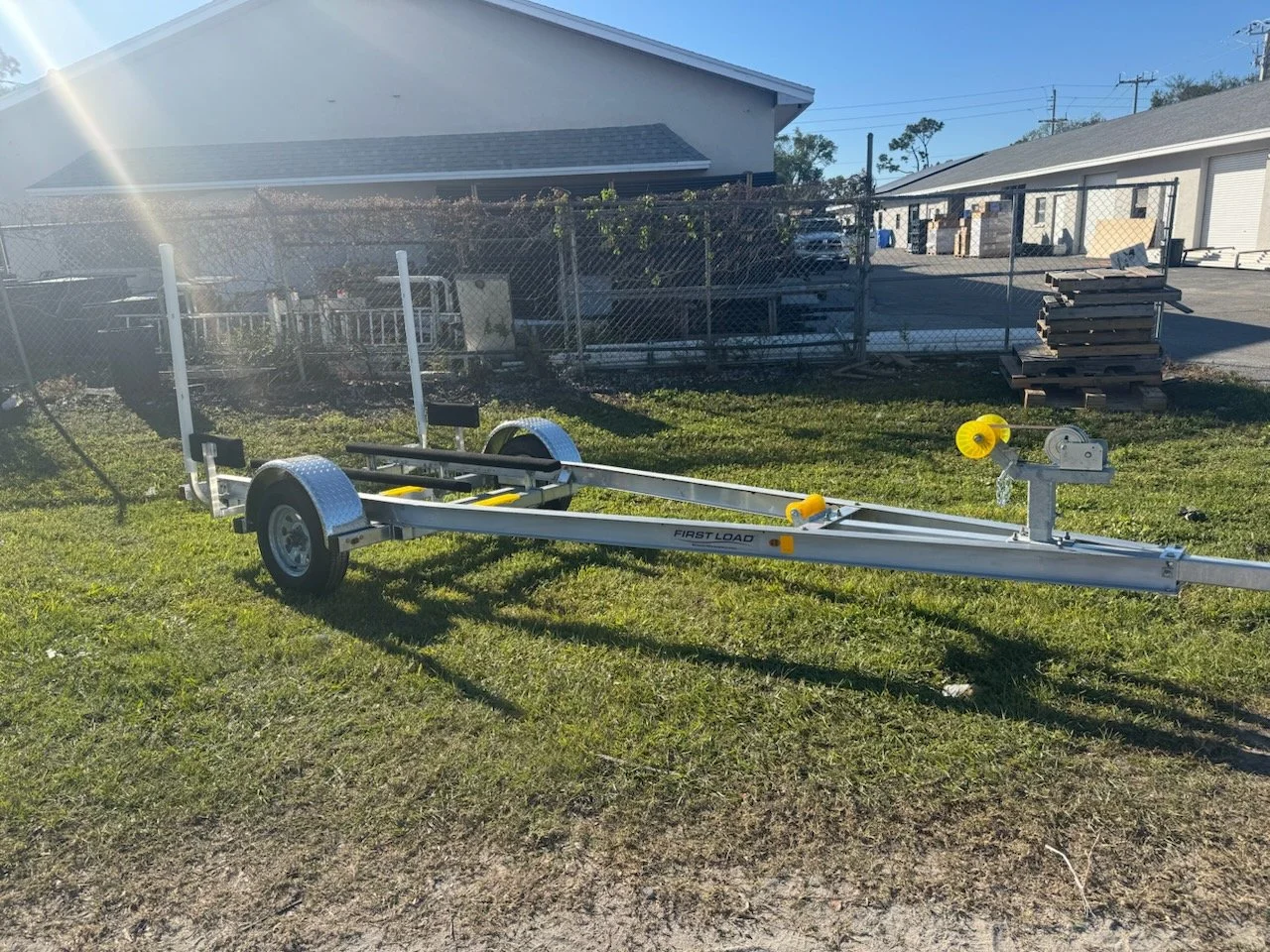

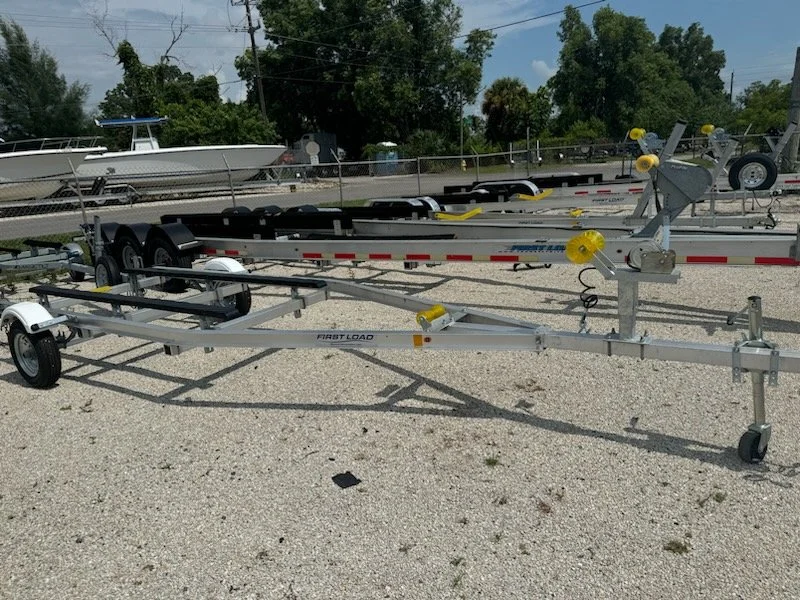

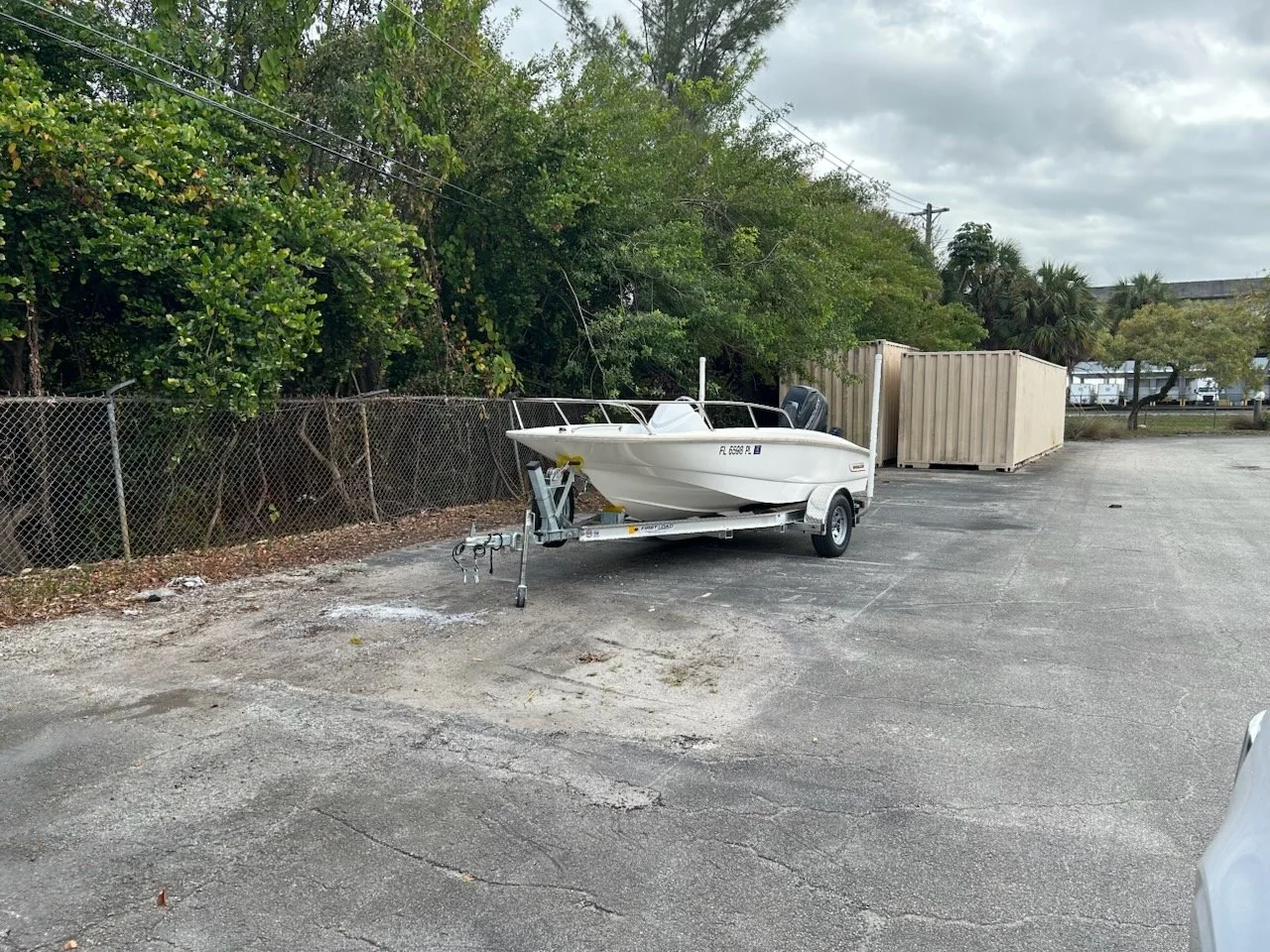

Adjustable Single Axle Trailer
First Load™ – Aluminum Trailer
Specifications
Part#
140010
140015
140025
140027
140030
140050
140070
Trailer Model

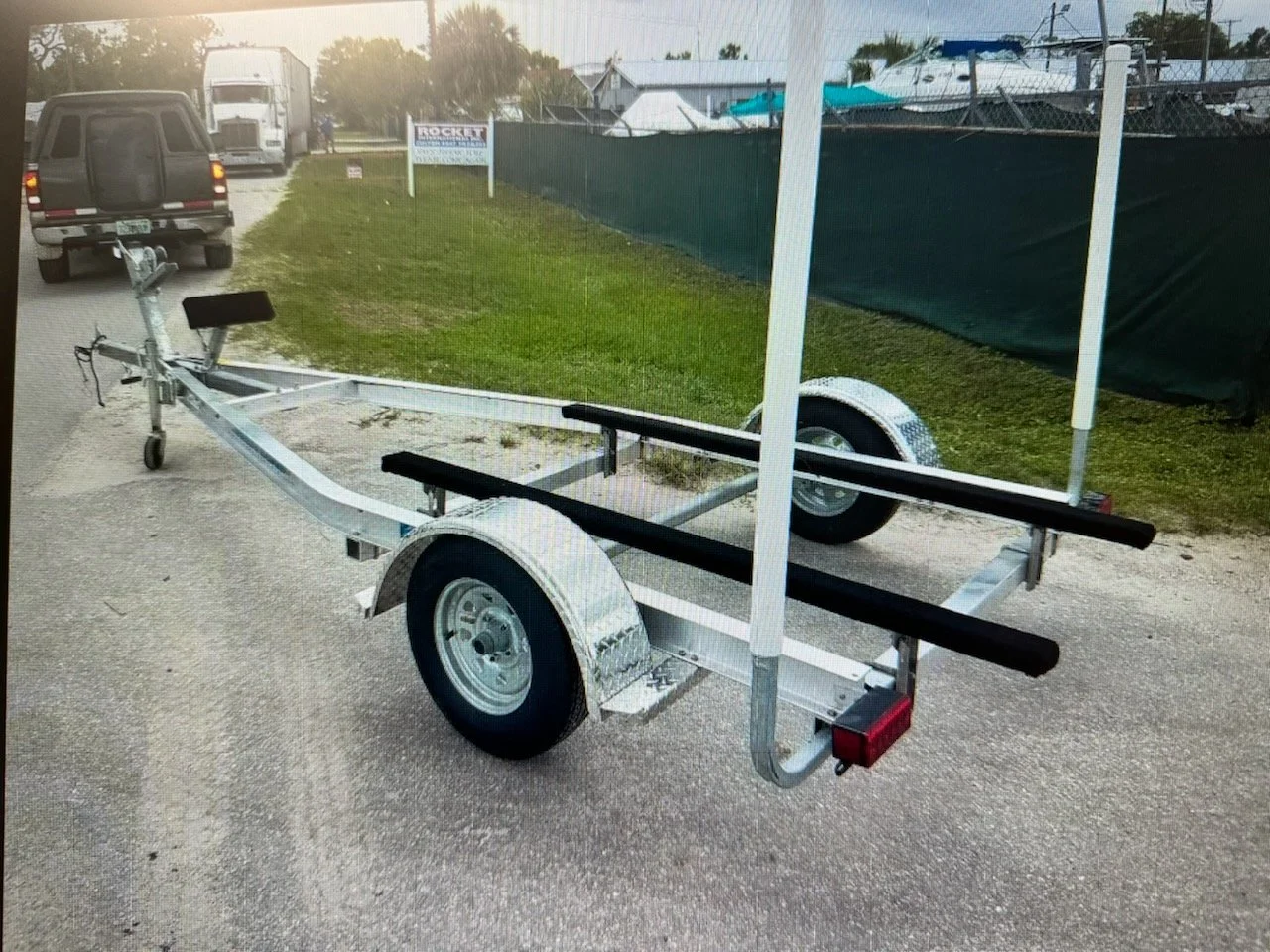

AF1416S
AF1517S
AF1719SA
AF1719SC
AF1820SA
AF1820SC
AF2022SC
Boat Length
14'-16'
15'-17'
17'-19'
17'-19'
18'-20'
18'-20'
20'-22
Frame W/L
64"/18'
72"/22'
80"/23'6"
80"/23'6"
80"/25'
80"/25'
80"/27
I-BEAM
4.5" X 14'
4.5" X 15'
4.5" X 18'
4.5" X 18'
5.5" X 20'
5.5" X 20'
5.5"X22'
Gross Weight
2500
2500
3500
5000
3500
5000
5000
Trailer Weight
500
500
600
800
650
800
800
Load Capacity
2200
2200
2900
4200
2850
4200
4200
Tire Size
R13
R13
R14
R15
R14
R15
R15
Standard Equipment
- Aluminum I-Beam Construction
- Adjustable Y-Bar Hull Supports, Guide Bunks
- Keel Centering Guide
- POSI-LUBE Lubrication
- Tongue Jack
- LED Lights
- Aluminum Diamond Plate Fenders
- Galvanized Wheels, Hubs, and Axles
- Adjustable Bow Stop & Winch Stand
- Torsion Axles, Guide Poles
- Stainless Hardware
- Radial Tires
Trailer Options
Part #
17025
17045
113460
112105
Equipment
Spare Tire Mount 4, 5, 6 Lug HD 4.5"-5.5" I-Beam Mounting Bracket Galvanized
Spare Tire Carrier 6-8 Lug For 5.5-7.5" I-Beam Bolt-On
Aluminum Front Center Keel Guides
Y-Stop LD For Skiff Models
Specifications
| PART # 140010 |
| Trailer Model | AF1416S |
| Boat Length | 14′-16′ |
| Frame W/L | 64″/18′ |
| I-Beam | 4.5″x14′ |
| Gross Weight | 2500 |
| Trailer Weight | 500 |
| Load Cap | 2200 |
| Tire Size | R13 |
| PART # 140015 |
| Trailer Model | AF1517S |
| Boat Length | 15′-17′ |
| Frame W/L | 72″/22′ |
| I-Beam | 4.5″x15′ |
| Gross Weight | 2500 |
| Trailer Weight | 500 |
| Load Cap | 2200 |
| Tire Size | R13 |
| PART # 140025 |
| Trailer Model | AF1719SA |
| Boat Length | 17′-19′ |
| Frame W/L | 80″/23’6″ |
| I-Beam | 4.5″x18′ |
| Gross Weight | 3500 |
| Trailer Weight | 600 |
| Load Cap | 2900 |
| Tire Size | R14 |
| PART # 140027 |
| Trailer Model | AF1719SC |
| Boat Length | 17′-19′ |
| Frame W/L | 80″/23’6″ |
| I-Beam | 4.5″x18′ |
| Gross Weight | 5000 |
| Trailer Weight | 800 |
| Load Cap | 4200 |
| Tire Size | R15 |
| PART # 140030 |
| Trailer Model | AF1820SA |
| Boat Length | 18′-20′ |
| Frame W/L | 80″/25′ |
| I-Beam | 5.5″x20′ |
| Gross Weight | 3500 |
| Trailer Weight | 650 |
| Load Cap | 2850 |
| Tire Size | R14 |
| PART # 140030 |
| Trailer Model | AF1820SA |
| Boat Length | 18′-20′ |
| Frame W/L | 80″/25′ |
| I-Beam | 5.5″x20′ |
| Gross Weight | 3500 |
| Trailer Weight | 650 |
| Load Cap | 2850 |
| Tire Size | R14 |
| PART # 140050 |
| Trailer Model | AF1820SC |
| Boat Length | 18′-20′ |
| Frame W/L | 80″/25′ |
| I-Beam | 5.5″x20′ |
| Gross Weight | 5000 |
| Trailer Weight | 800 |
| Load Cap | 4200 |
| Tire Size | R15 |
| PART # 140070 |
| Trailer Model | AF2022SC |
| Boat Length | 20′-22′ |
| Frame W/L | 80″/27′ |
| I-Beam | 5.5″x22′ |
| Gross Weight | 5000 |
| Trailer Weight | 800 |
| Load Cap | 4200 |
| Tire Size | R15 |
Standard Equipment
- Aluminum I-Beam Construction
- Adjustable Y-Bar Hull Supports, Guide Bunks
- Keel Centering Guide
- POSI-LUBE Lubrication
- Tongue Jack
- LED Lights
- Aluminum Diamond Plate Fenders
- Galvanized Wheels, Hubs, and Axles
- Adjustable Bow Stop & Winch Stand
- Torsion Axles, Guide Poles
- Stainless Hardware
- Radial Tires
Trailer Options
| PART # 17025 |
| Equipment | Spare Tire Mount 4, 5, 6 Lug HD 4.5″-5.5″ I-Beam Mounting Bracket Galvanized |
| PART # 17045 |
| Equipment | Spare Tire Carrier 6-8 Lug For 5.5-7.5″ I-Beam Bolt-On |
| PART # 113460 |
| Equipment | Aluminum Front Center Keel Guides |
| PART # 112105 |
| Equipment | Y-Stop LD For Skiff Models |
