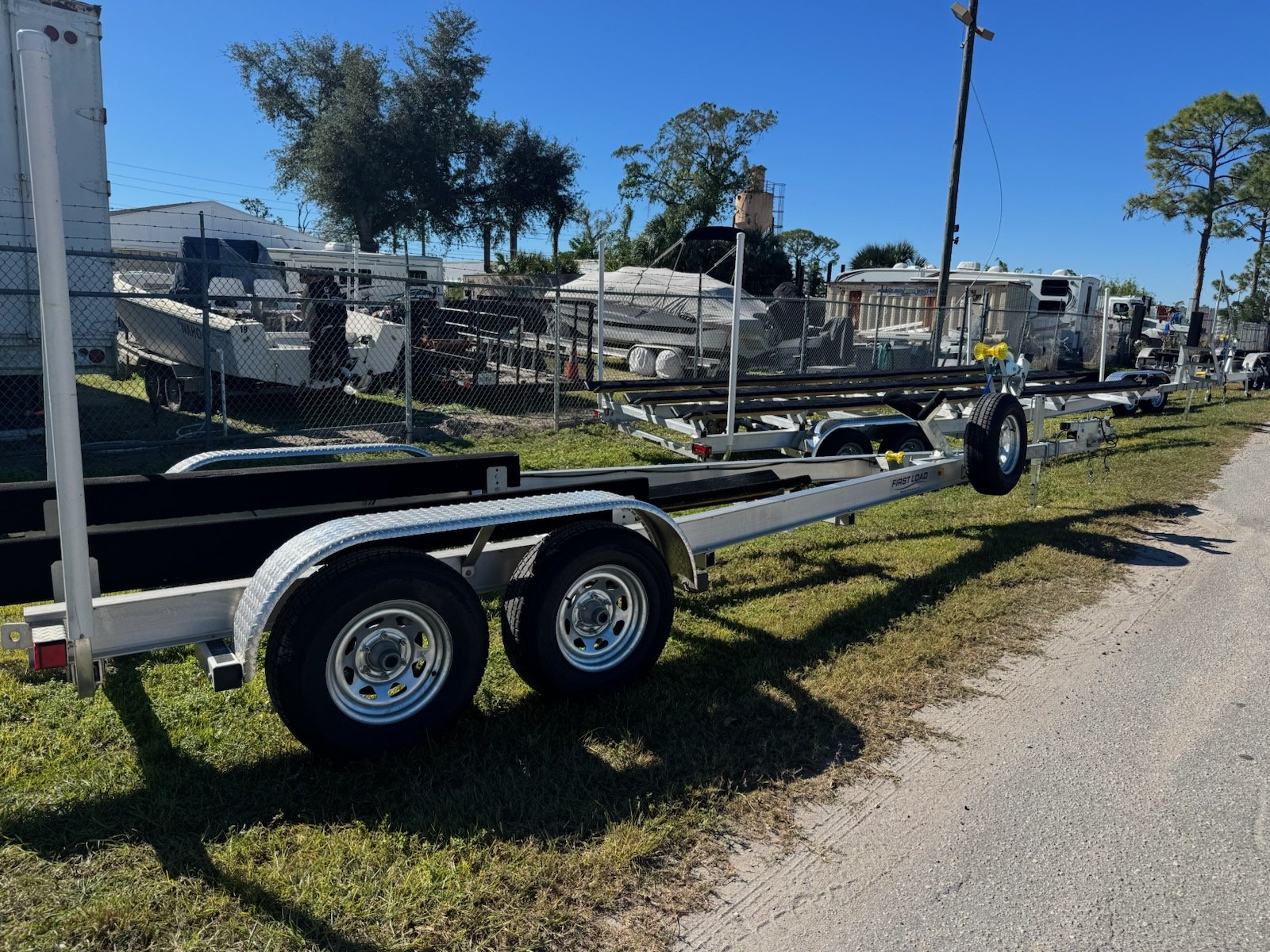

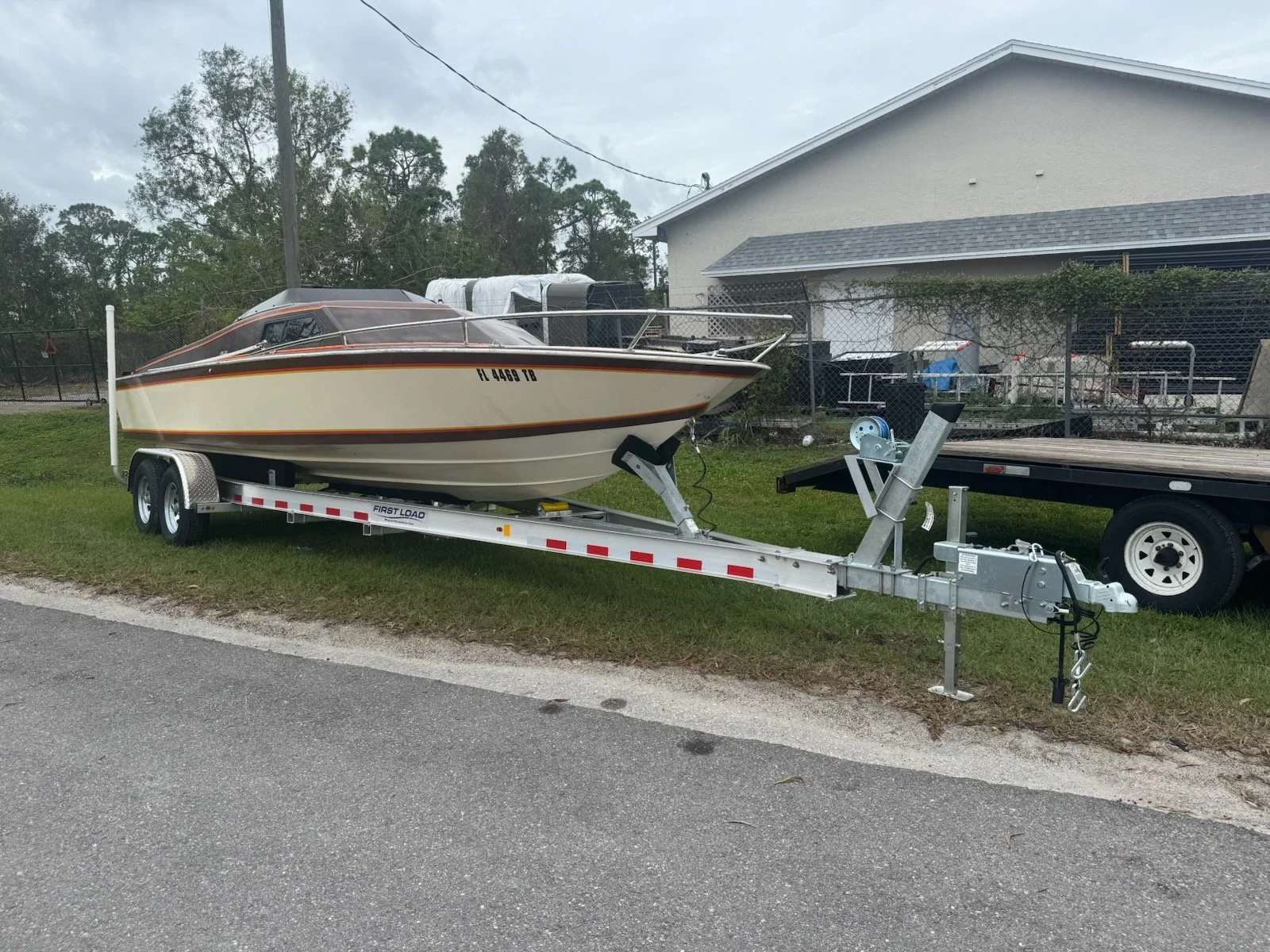

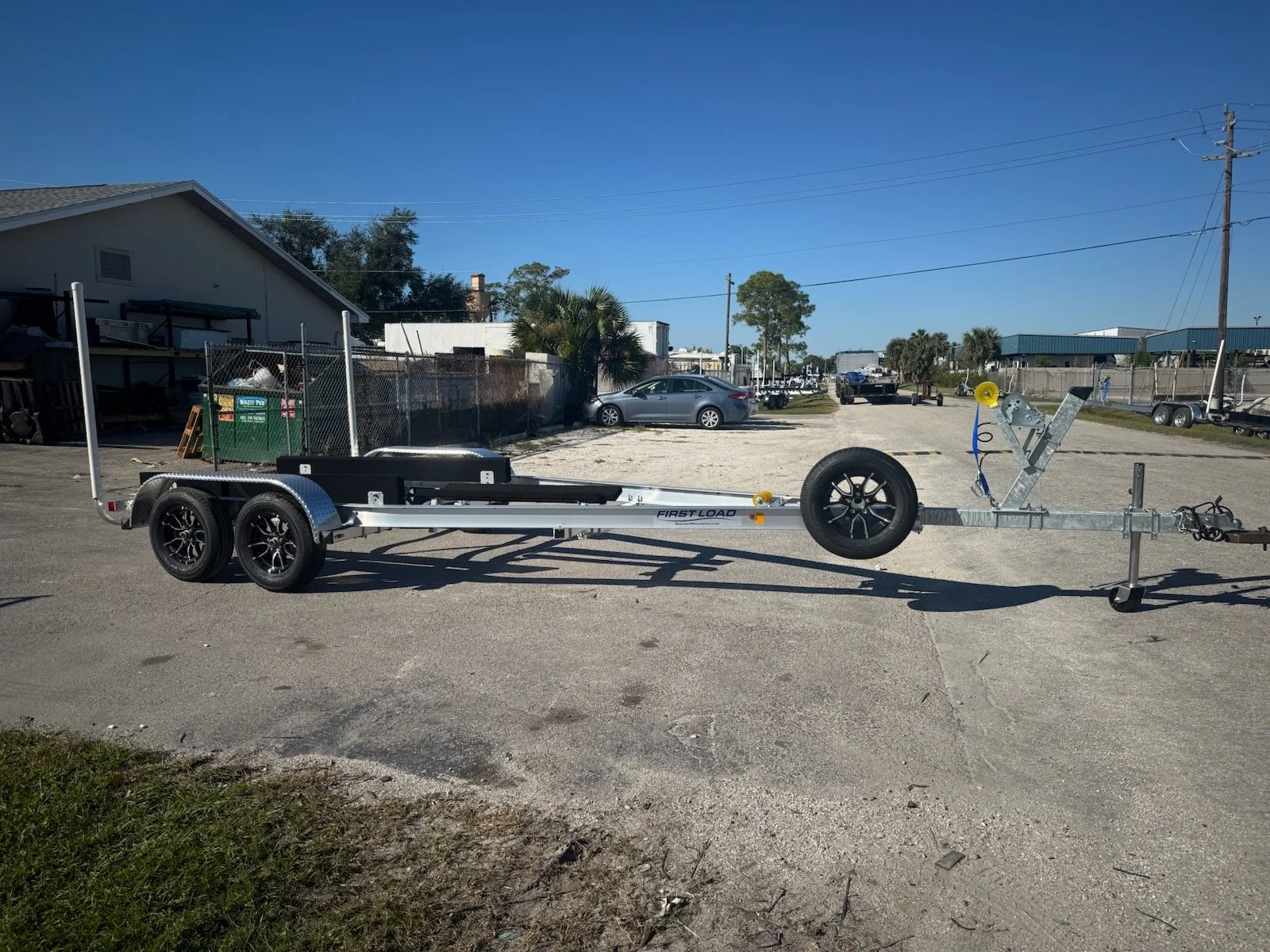

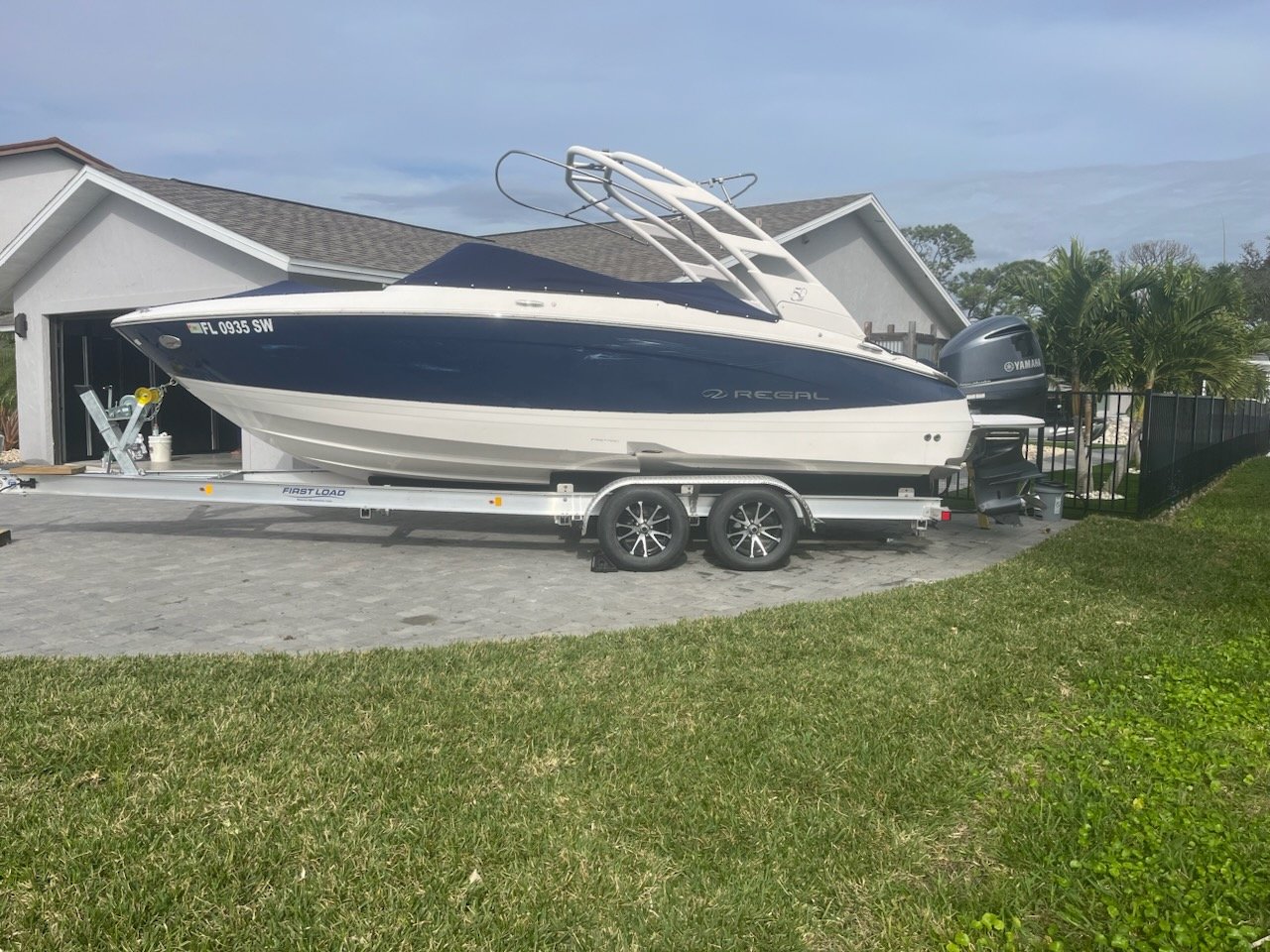

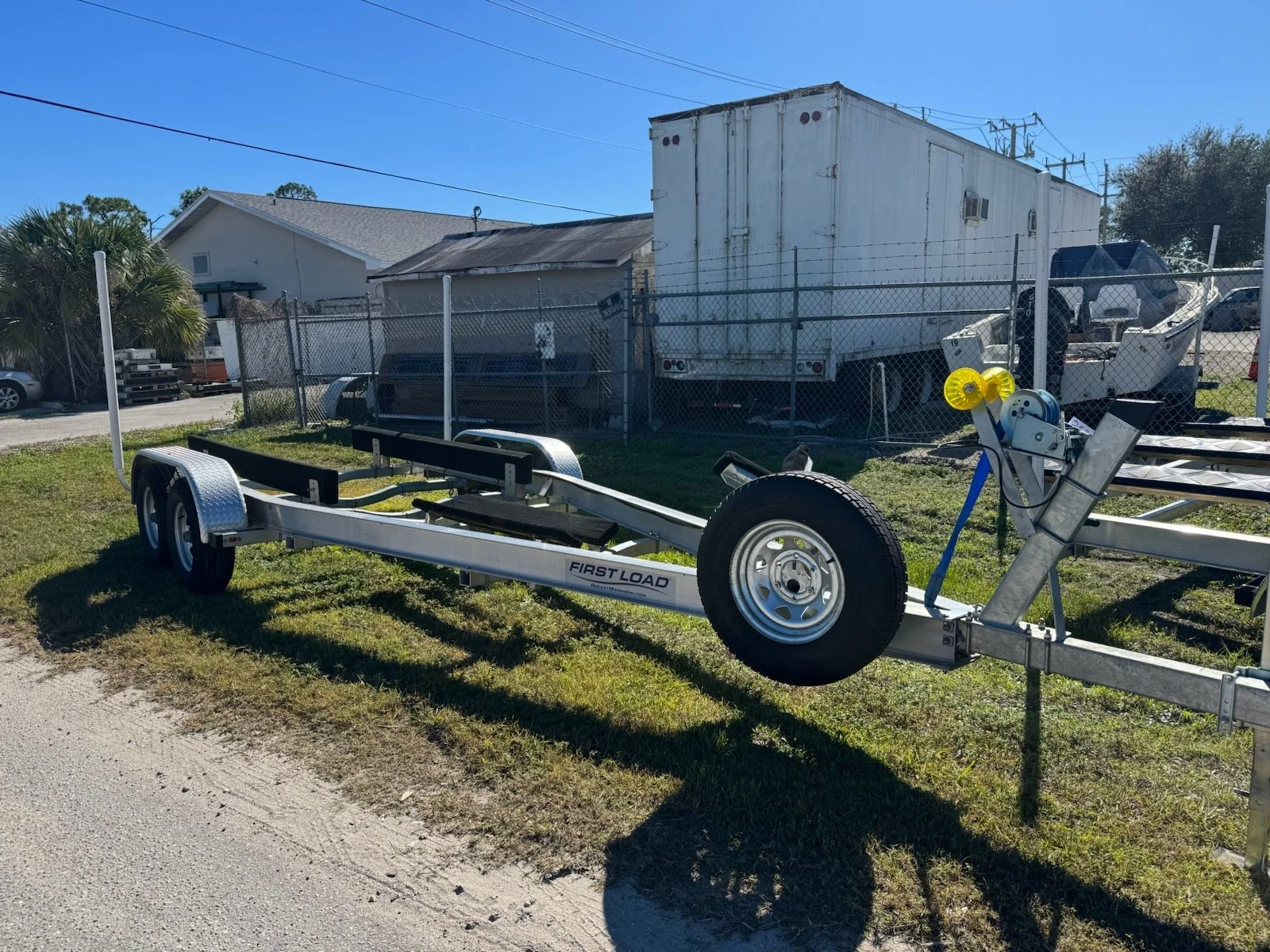

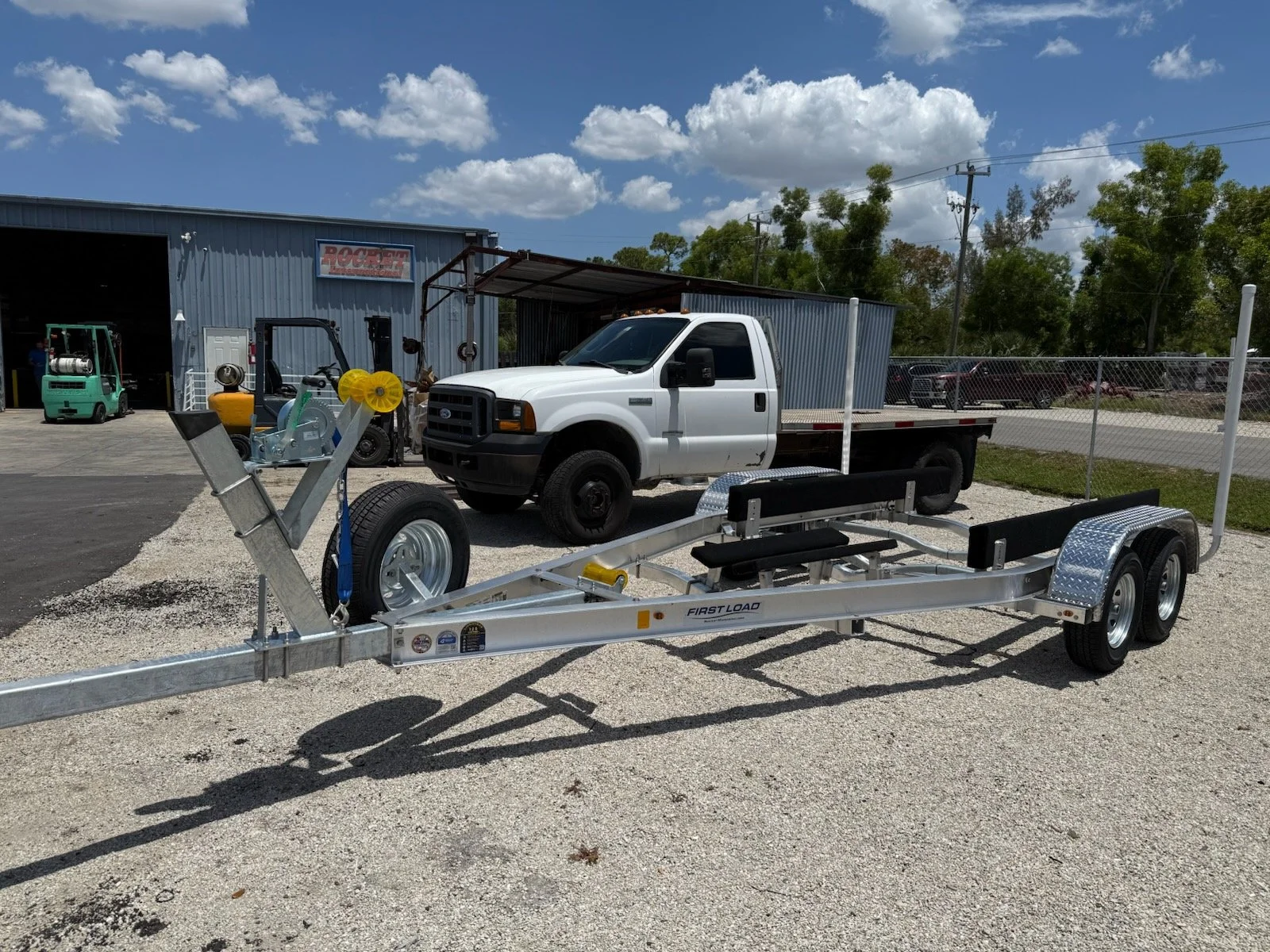

Adjustable Tandem Axle Trailer

First Load – Aluminum Trailer

Specifications

Part#
140028
140065
140105
140120
140130
140140
140160
140190
140230
140250
140720
Trailer Model
AF1719T
AF1820TA
AF2022TA
AF2224TA
AF2224TC
AF2426TA
AF2426TC
AF2628TC
AF2830TC
AF2830TE
AF3032TE
Boat Length
17'-19'
18'-20'
20'-22'
22'-24'
22'-24'
24'-26'
24'-26'
26'-28'
28'-30'
28'-30'
30'-32'
Frame W/L
80"/23'6"
80"/25'
80"/27'
80"/28'
80"/28'
80"/30'
80"/30'
80"/32'
80"/35'
80"/35'
80"/37'
I-BEAM
5.5"x18'
5.5x20'
5.5x22'
5.5x23'
5.5x23'
6.5x25'
6.5x25'
6.5x27'
6.5x30'
6.5x30'
7.5x32'
Gross Weight
5400
7000
7000
7000
10000
7000
10000
10000
10000
12000
12000
Trailer Weight
800
800
1000
1100
1200
1100
1280
1280
1340
2200
2200
Load Capacity
4200
6200
6000
5900
8800
5900
8720
5720
8660
9800
9800
Tire Size
R13C
R14C
R14C
R14C
R15D
R14C
R15D
R15D
R15D
R16E
R16E

Standard Equipment

  • Aluminum I-Beam Construction
  • Adjustable Y-Bar Hull Supports
  • Keel Centering Guides
  • POSI-LUBE Lubrication
  • Guide Poles
  • Stainless Hardware
  • Aluminum Diamond Plate Fenders
  • Galvanized Wheels, Hubs, and Torsion Axles
  • Adjustable Bow Stop & Winch Stand
  • Tongue Jack, Disc Brakes on All Wheels
  • LED Tail Lights and Side Markers
  • Radial Tires

Specifications

PART # 140028
Trailer Model AF1719T
Boat Length 17′-19′
Frame W/L 80″/23’6″
I-Beam 5.5″x18′
Gross Weight 5400
Trailer Weight 800
Load Cap 4200
Tire Size R13C
PART # 140065
Trailer Model AF1820TA
Boat Length 18′-20′
Frame W/L 80″/25′
I-Beam 5.5″x20′
Gross Weight 7000
Trailer Weight 800
Load Cap 6200
Tire Size R14C
PART # 140105
Trailer Model AF2022TA
Boat Length 20′-22′
Frame W/L 80″/27′
I-Beam 5.5″x22′
Gross Weight 7000
Trailer Weight 1000
Load Cap 6000
Tire Size R14C
PART # 140120
Trailer Model AF2224TA
Boat Length 22′-24′
Frame W/L 80″/28′
I-Beam 5.5″x23′
Gross Weight 7000
Trailer Weight 1100
Load Cap 5900
Tire Size R14C
PART # 140130
Trailer Model AF2224TC
Boat Length 22′-24′
Frame W/L 80″/28′
I-Beam 5.5″x23′
Gross Weight 10000
Trailer Weight 1200
Load Cap 8800
Tire Size R15D
PART # 140140
Trailer Model AF2426TA
Boat Length 24′-26′
Frame W/L 80″/30′
I-Beam 6.5″x25′
Gross Weight 7000
Trailer Weight 1100
Load Cap 5900
Tire Size R14C
PART # 140160
Trailer Model AF2426TC
Boat Length 24′-26′
Frame W/L 80″/30′
I-Beam 6.5″x25′
Gross Weight 10000
Trailer Weight 1280
Load Cap 8720
Tire Size R14D
PART # 140190
Trailer Model AF2628TC
Boat Length 26′-28′
Frame W/L 80″/32′
I-Beam 6.5″x27′
Gross Weight 10000
Trailer Weight 1280
Load Cap 5720
Tire Size R15D
PART # 140230
Trailer Model AF2830TC
Boat Length 28′-30′
Frame W/L 80″/35′
I-Beam 6.5″x30′
Gross Weight 10000
Trailer Weight 1340
Load Cap 8660
Tire Size R15D
PART # 140250
Trailer Model AF2830TE
Boat Length 28′-30′
Frame W/L 80″/35′
I-Beam 6.5″x30′
Gross Weight 12000
Trailer Weight 2200
Load Cap 9800
Tire Size R16E
PART # 140720
Trailer Model AF3032TE
Boat Length 30′-32′
Frame W/L 80″/37′
I-Beam 7.5″x32′
Gross Weight 12000
Trailer Weight 2200
Load Cap 9800
Tire Size R16E

Standard Equipment

  • Aluminum I-Beam Construction
  • Adjustable Y-Bar Hull Supports
  • Keel Centering Guides
  • POSI-LUBE Lubrication
  • Guide Poles
  • Stainless Hardware
  • Aluminum Diamond Plate Fenders
  • Galvanized Wheels, Hubs, and Torsion Axles
  • Adjustable Bow Stop & Winch Stand
  • Tongue Jack, Disc Brakes on All Wheels
  • LED Tail Lights and Side Markers
  • Radial Tires
